Spectra XL

Spectra XL

A CPM designed for bariatric patients, with extra wide carriage and high user weight.

Please note the delivery time for the Spectra XL CPM for the UK is 3 – 5 business days.

For fabric washable leg supports please use this code – 4621006807

For wipe clean PU leg supports please use this code – 4621006847

Contact us for Price

    SKU: 4621006807, 4621006847


    A CPM designed for bariatric patients, with extra wide carriage and high user weight. Using the modern Spectra design, this version is supplied with wipe-clean PU supports.

      • 32 cm (12,5 inches) wide carriage
      • Patients up to 227kg (500lbs)
      • Kinetec Data Capture™ USB technology ready
      • ROM from -10° to 120°

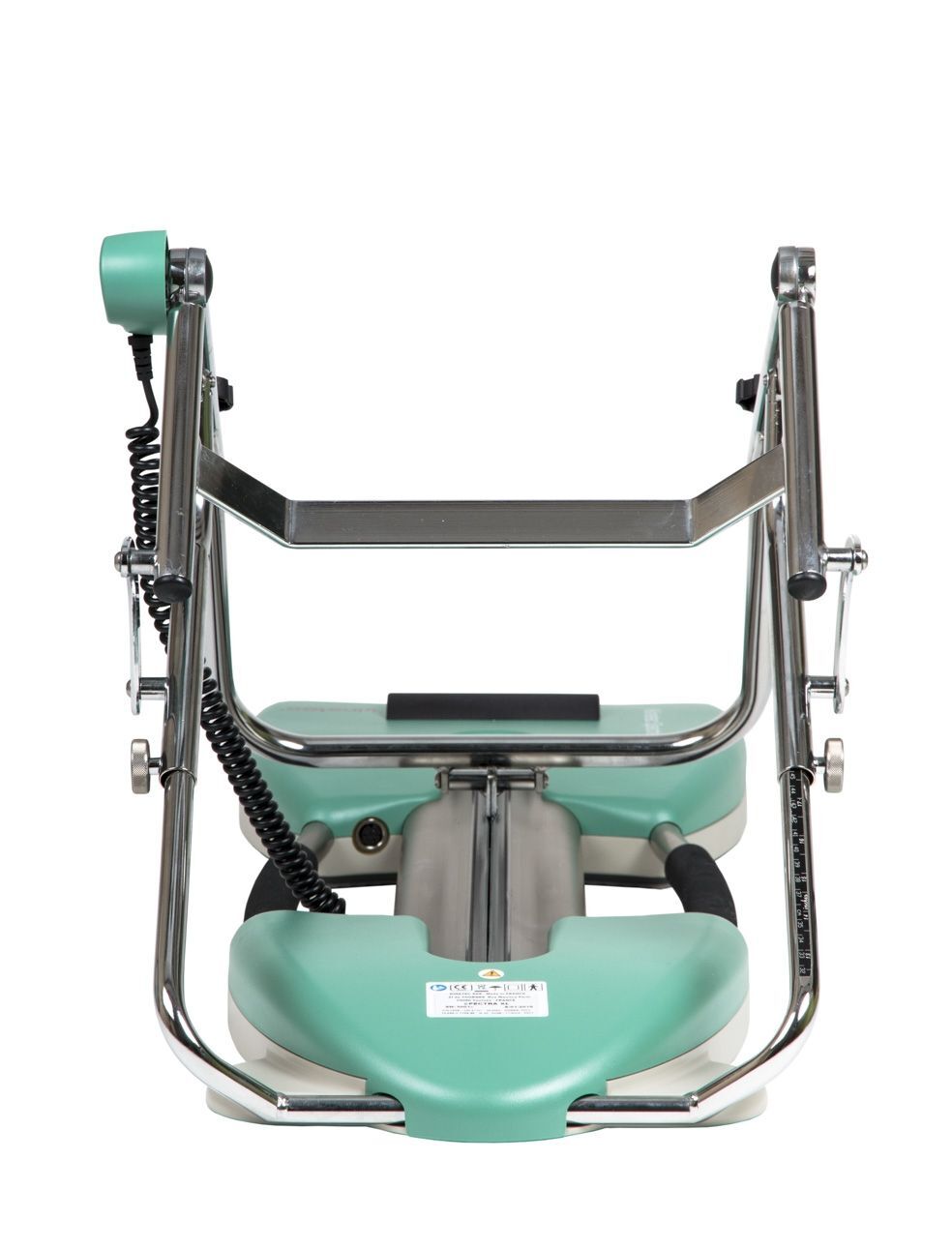

    Extra Wide Carriage:

    The Kinetec Spectra XL™ benefits from many of the features of the standard Spectra, but features a wider and stronger carriage to enable it to be used in the treatment of bariatric patients. The carriage is 32cm (12.5 inches) wide compared with 25cm (9.8 inches) for other standard CPMs.

    227kg (500lbs) Maximum User Weight:

    The reinforcement of the motor enables it to mobilise the legs with extreme dimensions in a safe environment, allowing patients upto 227kg to use the device.

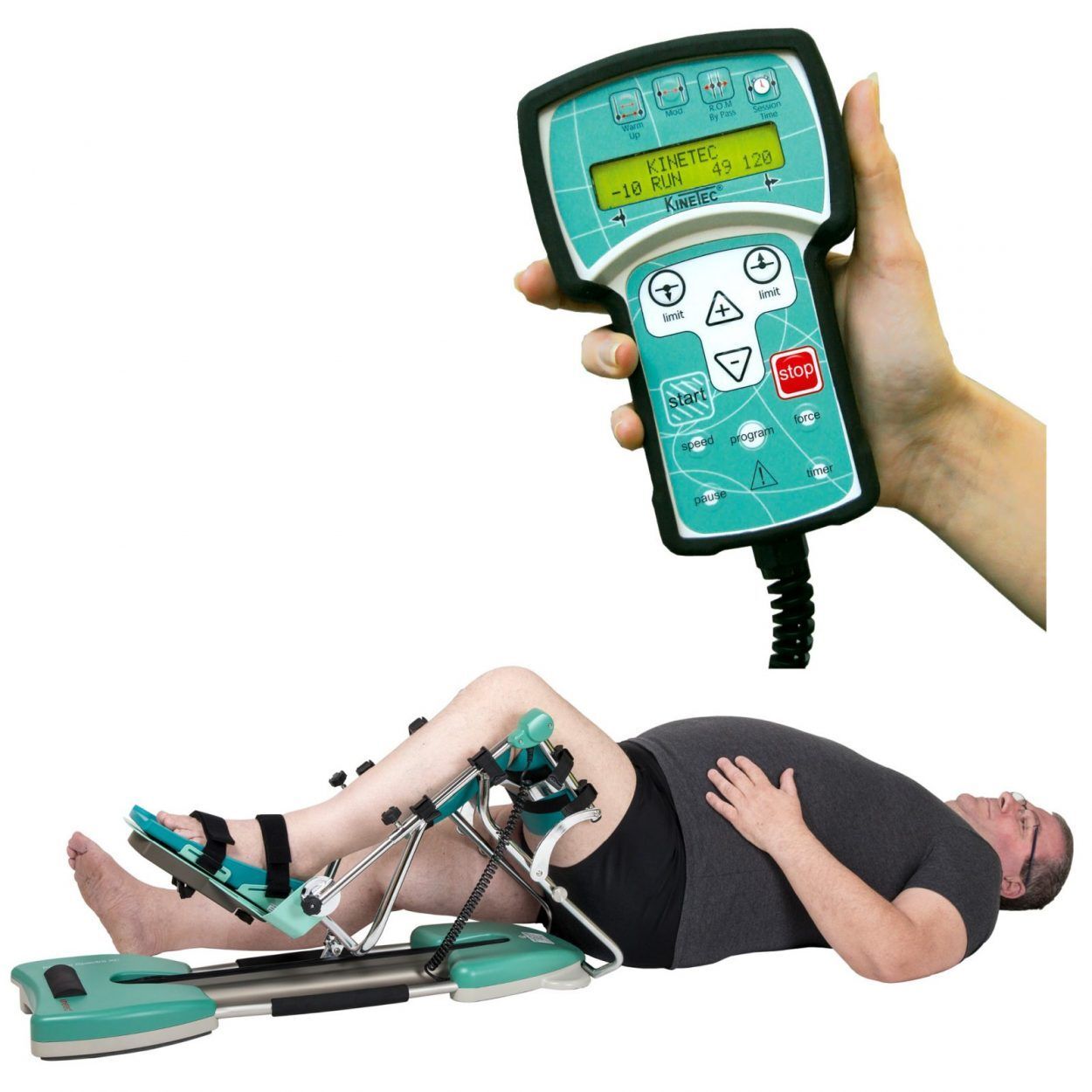

    Wide range of functions, controlled by the handset:

    The Kinetec Spectra XL has a wide range of functions all controlled via the digital handset. Functions include speed, ROM, force, pause in extension/flexion, timer, programming, warm-up, by-pass and session timing. This handset can also use patient data capture via a USB and software which can be provided as an accessory.

    Patient safety:

    The handset can be easily locked to prevent alteration of the parameters by patients whilst in use.

    Outstanding range of motion:

    This CPM provides a wide range of motion from -3 degrees of hyperextension to 130 degrees of flexion allows treatment of most knee & hip pathologies.

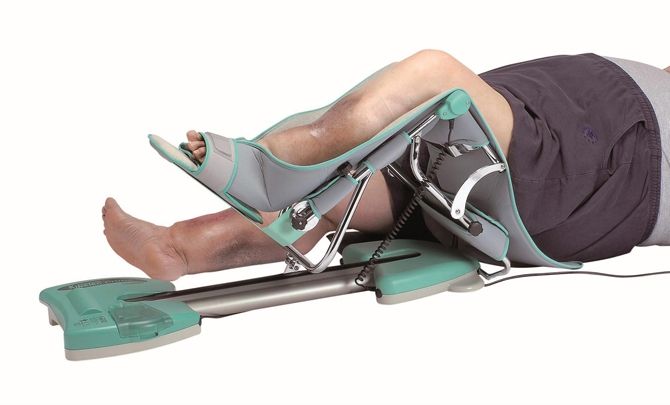

    PU leg supports:

    This version of the Spectra™ is supplied with PU pads that can be wipe-cleaned between patients using standard hospital anti-bacterial wipes. The pads should be wiped between patients. (Supplied with thigh, calf and foot support).


    Accessories include a trolley, data capture and warranty extensions.

    Additional information

    Weight13 kg

    Product: Weight 13kg (28 pounds)

    Product: Splint dimensions 94cm (37 in) x 37 cm (14.5 in) x 33cm (13 in)

    Product: Angular limits -10 to 120°

    Product: Speed from 60 to 170° per minute

    Product: Patient full leg from 71cm (30″) to 99cm (39″); Tibia from 38cm (15″) to 53cm (21″); Femur from 33cm (13″) to 46cm (18″)

    Product: Maximum user weight 227kg (500 pounds)

    Electrical: Power supply 100-240 V~

    Electrical: Frequency 50-60Hz

    Electrical: Power consumption 20W

    Electrical: Device of type B Class 1

    Electrical: IP 20

    Storage/Transport Conditions: Temperature -40 to 70°C / -40 to 160°F

    Storage/Transport Conditions: Relative humidity up to 90%

    Operating Conditions: Room temperature 10 to 40°C (50 to 105°F)

    Operating Conditions: Relative humidity up to 80%

    Warranty: 2 Years

    Spectra XL Product Brochure

    Spectra XL ISO Document
