Spectra Essential

Spectra Essential

The Kinetec Spectra Essential™ combines stylish design and outstanding functionality with a simple hand control.



For fabric washable leg supports please use this code – 4621006207

For wipe clean PU leg supports please use this code – 4621006247

Contact us for Price

    SKU: 4621006247, 4621006207 Categories: , Tags: , , ,

    Description

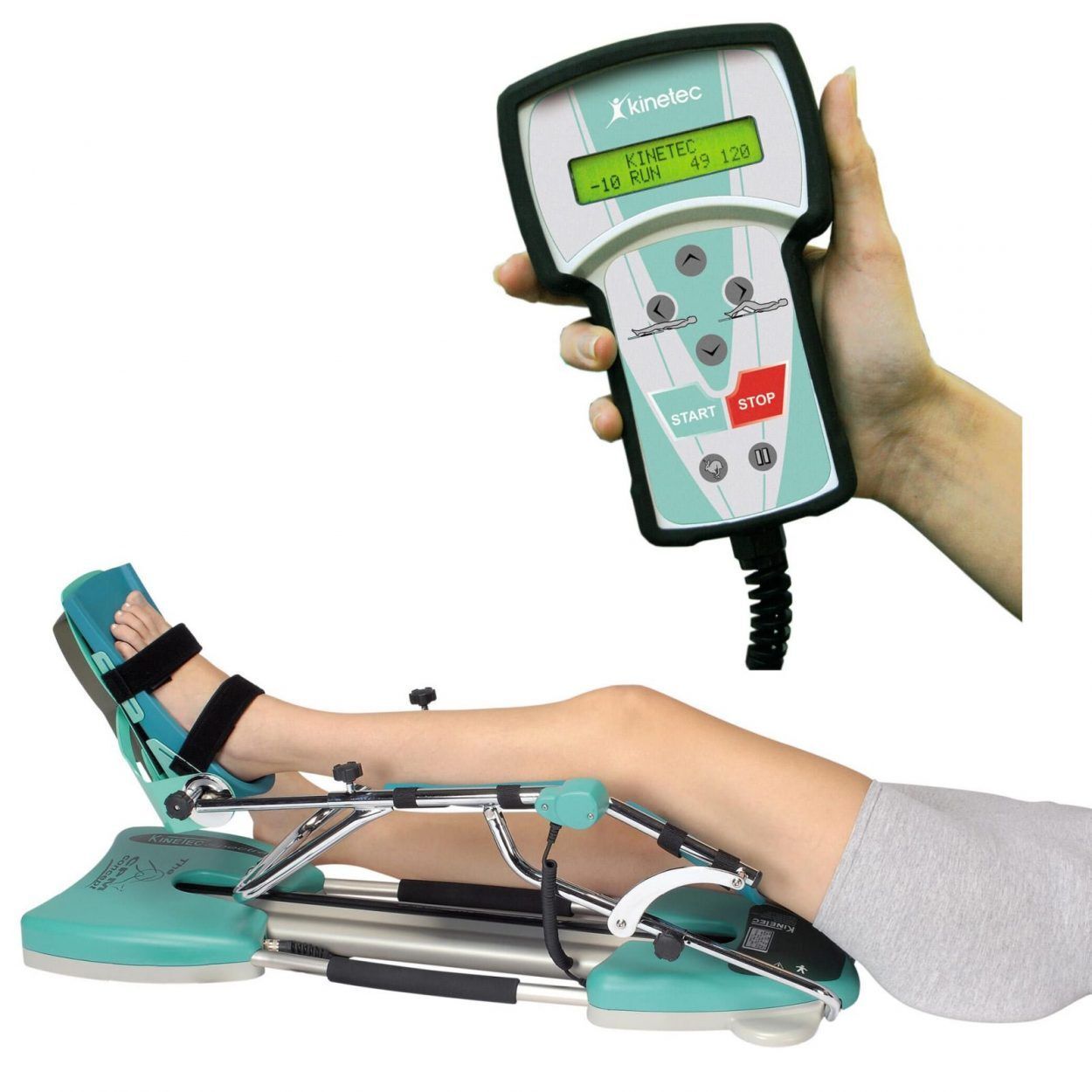

    The Kinetec Spectra Essential™ combines stylish design and outstanding functionality with a simple hand control.

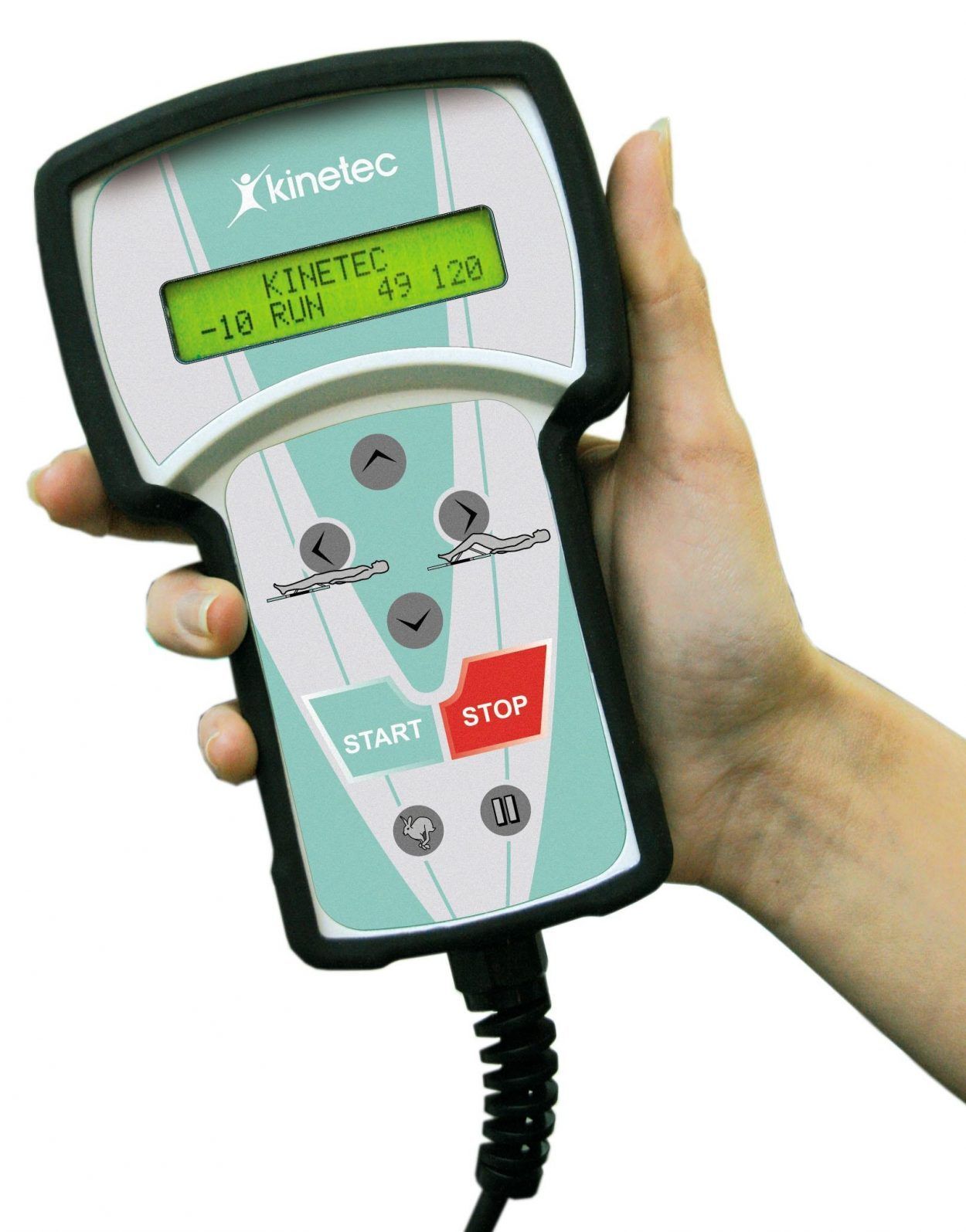

    Intuitive remote control

    The remote control design provides an immediate and intuitive control by the user in hospitals or at home helping the patient to focus on the therapy.

    Main functions featured

    Range of motion, speed and pauses are all adjustable on the remote control.

    Safety first

    The remote control features a keyboard locking system preventing misuse and enhancing patient safety.

    Range of motion

    From -10° to 120° of flexion.
    The KINETEC SPECTRA ESSENTIALTM range of motion allows treatment of most knee & hip pathologies. Anatomically correct alignment increases patient compliance and decreases joint stress.

    Technical specifications

    The anatomically correct system increases the comfort of the patient and decreases the points of pressure. Patient lock-out prevents accidental program changes and potential injury.


    Start/Stop and reverse always accessible.


    Precise adjustment of the essential parameters of the movement: ROM, speed, pauses at the limit of extension or flexion for improved results.


    Internally contained medical grade transformer eliminates handling extra components.


    Type BF class II electrical device.


    Long-life DC motor and screw-drive mechanism for years of reliable performance.


    ROM: Knee: -10° to 120°, Hip: 75° to 10°.


    Foot positioning: Plantar flexion: 40°, Dorsal flexion : 30°, Abduction/adduction: 30°.


    Speed: 45° to 155° per minute.


    Patient sizing:

    Full patient: 145 to 195 cm

    Full leg size: 71 to 99 cm

    Tibia: Femur: 38 to 53 cm

    Femur: 33 to 46 cm

    User weight: 135 kg

    Our Youtube channel features the unboxing and set up of our CPM’s. Click on the links below to see them:

    Spectra Knee CPM comfort supports set up

    Spectra Knee CPM pads set up

    Knee CPM unboxing
